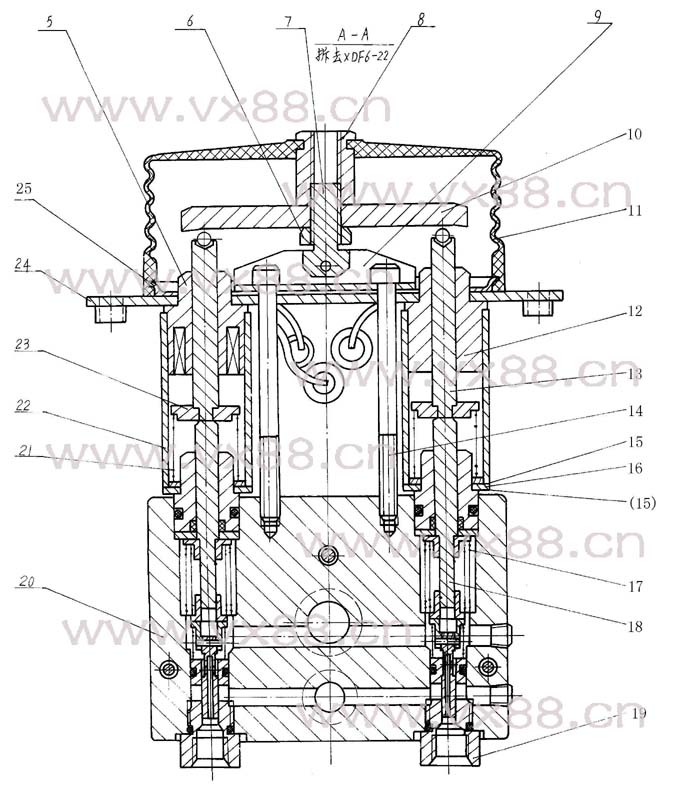

图文名称：先导阀 XDF6
所属机型：CLG856
图文编号：472
物料编号：XDF6
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
03B0087 |
GB6170-86 |
螺母 |
Nut |
M8-10-Zn.D |
6 |
|
2 |
05B0010 |
GB898-88 |
螺柱 |
Bolt |
M8×85-8.8 |
3 |
|
3 |
12B0004 |
GB3452.1-82 |
O形圈 |
“O” Ring |
23.6×3.55 |
1 |
|
4 |
12B0064 |
GB3452.1-82 |
O形圈 |
“O” Ring |
19×3.55 |
1 |
|
5 |
31B0003 |
XDF6.1 |
线圈总成 |
Coil |
|
2 |
|
6 |
03B0088 |
GB6173-86 |
螺母 |
Nut |
M12×1.25 |
2 |
|
7 |
00B0069 |
XDF6-1 |
螺栓 |
Bolt |
|
2 |
|
8 |
03B0089 |
XDF6-2 |
螺母 |
Nut |
|
2 |
|
9 |
20A0152 |
XDF6-3 |
支架 |
Support |
|
2 |
|
10 |
72A0034 |
XDF6-4 |
压条 |
Hold Down Strip |
|
2 |
|
11 |
83A0022 |
XDF6-5 |
橡胶罩 |
Rubber Boot |
|
2 |
|
12 |
55A0094 |
XDF6-6 |
轴套 |
Axle Sleeve |
|
1 |
|
13 |
38C0002 |
XDF6.2 |
压销组 |
Pin |
|
4 |
|
14 |
04B0029 |
GB70-85 |
螺钉 |
Bolt |
|
4 |
|
15 |
81A0012 |
XDF6-7 |
垫片 |
Washer |
|
12 |
|
16 |
56A0053 |
XDF6-8 |
垫圈 |
Washer |
|
4 |
|
17 |
75A0036 |
XDF6-9 |
弹簧 |
Spring |
|
2 |
|
18 |
12C0020 |
XDF6.3 |
阀组 |
Valve Block |
|
2 |
|
19 |
12C0021 |
XDF6.4 |
阀组 |
Valve Block |
|
3 |
|
20 |
78A0018 |
XDF6-10 |
转斗阀体 |
Valve Block |
|
1 |
|
21 |
75A0037 |
XDF6-11 |
弹簧 |
Spring |
|
4 |
|
22 |
55A0095 |
XDF6-12 |
套筒 |
Bush |
|
4 |
|
23 |
53A0047 |
XDF6-13 |
压板 |
Plate |
|
4 |
|
24 |
38C0003 |
XDF6.5 |
固定板 |
Plate |
|
1 |
|
25 |
20A0153 |
XDF6-14 |
胶套座 |
Rubber Seat |
|
2 |
|
26 |
31B0004 |
XDF6.6 |
线圈总成 |
Coil |
|
1 |
|
27 |
07B0020 |
GB894.1-86 |
挡圈 |
Check Ring |
6 |
4 |
|
28 |
08B0024 |
XDF6-15 |
销 |
Pin |
|
2 |
|
29 |
81A0013 |
XDF6-16 |
垫片 |
Washer |
|
4 |
|
30 |
56A0054 |
XDF6-17 |
垫圈 |
Washer |
|
4 |
|
31 |
12C0022 |
XDF6.7 |
阀组 |
Valve Block |
|
2 |
|
32 |
03B0178 |
CBG3160A-12 |
内六角螺塞 |
Screw Plug |
|
6 |
|
33 |
12C0023 |
XDF6.8 |
阀组 |
Valve Block |
|
1 |
|
34 |
12C0024 |
XDF6.9 |
阀组 |
Valve Block |
|
1 |
|
35 |
78A0019 |
XDF6-18 |
提升阀体 |
Valve Block |
|
1 |
|
36 |
55A0096 |
XDF6-19 |
导向套 |
Orienting Sleeve |
|
1 |
|
37 |
75A0038 |
XDF6-20 |
弹簧 |
Spring |
|
1 |
|
38 |
12B0143 |
GB1235-76 |
O形圈 |
“O” Ring |
30×3.1 |
1 |
|
39 |
03B0090 |
XDF6-21 |
螺塞 |
Screw Plug |
|
1 | |
|
|
|
|
| |
|
|
|
|
