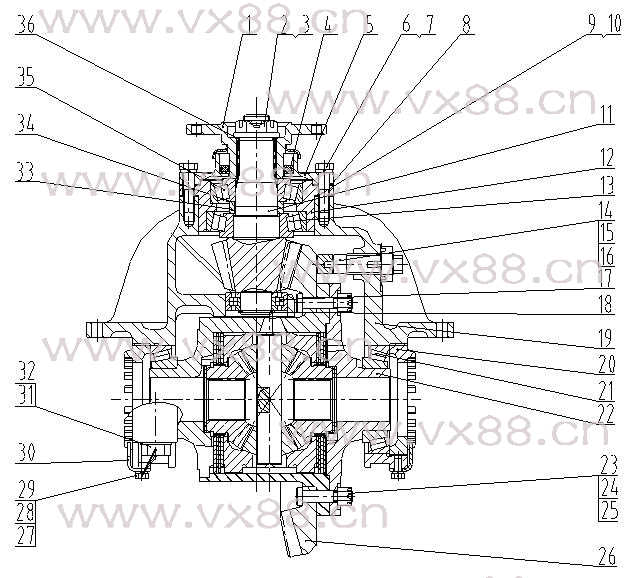

图文名称：前桥主传动总成 41C0111
所属机型：CLG862
图文编号：420
物料编号：41C0111
|
 |
|
| 详细资料 |
|
序号 |
零件号 |
原零件号 |
名 称 |
规格 |
数量 |
|
No. |
Part No. |
Old Part No. |
Description |
Size |
Qty |
|
1 |
12D0010 |
ZL50C.2.1.1 |
输入法兰 |
Flange |
|
1 |
|
2 |
03B0050 |
BS305-31 |
带槽螺母 |
Nut |
|
1 |
|
3 |
08B0032 |
GB91-86 |
销 |
Pin |
6.3X60-Zn.D |
1 |
|
4 |
13B0169 |
B1SL |
油封 |
Seal |
70X95X13 |
1 |
|
5 |
53A0106 |
ZL50C.2.1-2 |
密封盖 |
Cover |
|
1 |
|
6 |
00B0275 |
GB5783-86 |
螺栓 |
Bolt |
M14X55-8.8-Zn.D |
8 |
|
7 |
06B0013 |
GB93-87 |
垫圈 |
Washer |
14 |
8 |
|
8 |
80A0021 |
ZL50C.2.1-3 |
垫密片 |
Spacer |
|
1 |
|
9 |
57A0024 |
ZL50C.2.1-4 |
调整垫片 |
Adjusting Shim |
|
1 |
|
10 |
81A0072 |
|
垫片 |
Shim |
|
1 |
|
11 |
43A0014 |
|
前桥主动螺旋锥齿轮 |
Driving Helical
Bevel Gear |
|
1 |
|
12 |
55A0077 |
ZL50C.2.1-6 |
轴承套 |
Spacer |
|
1 |
|
13 |
23B0050 |
|
NSK圆锥滚子轴承 |
NSK Row Tapered
Roller Bearing |
HR30312DJ
60X130X33.5 |
1 |
|
14 |
44C0019 |
ZL50C.2.1.2 |
止推螺栓 |
Thrust Bolt |
|
1 |
|
15 |
03B0154 |
GB6173-86 |
螺母 |
Nut |
M27X2-04-Zn.D |
1 |
|
16 |
76A0011 |
ZL50C.2.1-7 |
锁紧片 |
Lock Strap |
|
1 |
|
17 |
22B0006 |
|
NSK圆柱滚子轴承 |
Row Cylindrical
Roller Bearing |
NUP2208ET
40X80X23 |
1 |
|
18 |
07B0038 |
GB894.1-86 |
挡圈 |
Ring |
40 |
1 |
|
19 |
41C0031 |
|
托架总成 |
Bracket Assem. |
|
1 |
|
20 |
03B0062 |
ZL50C.2.1-10 |
调整螺母 |
Adjusting Nut |
|
2 |
|
21 |
23B0012 |
GB/T297-1994 |
圆锥滚子轴承 |
Row Tapered
Roller Bearing |
32216
80X140X35.25 |
2 |
|
22 |
41C0112 |
|
C型限滑差速器总成 |
Differential Assembly |
|
1 |
|
23 |
02B0024 |
|
螺栓 |
Bolt |
|
12 |
|
24 |
03B0156 |
GB9457-88 |
螺母 |
Nut |
M14X1.5-8-Zn.D |
12 |
|
25 |
08B0040 |
GB91-86 |
销 |
Pin |
3.2X30-Zn.D |
12 |
|
26 |
43A0015 |
|
前桥大螺旋锥齿轮 |
Driven Helical
Bevel Gear |
|
1 |
|
27 |
02B0012 |
GB32.1-88 |
螺栓 |
Bolt |
M10X20-8.8-Zn.D |
2 |
|
28 |
06B0002 |
GB93-87 |
垫圈 |
Washer |
10 |
2 |
|
29 |
40B0006 |
|
铁丝 |
|
φ1.5×450 |
2 |
|
30 |
21A0040 |
ZL50C.2.1-14 |
锁紧片 |
Lock Strap |
|
2 |
|
31 |
02B0032 |
GB32.1-88 |
螺栓 |
Bolt |
M22X90-10.9-Zn.D |
1 |
|
32 |
06B0156 |
GB97.1-85 |
垫圈 |
Washer |
22-200HV-Zn.D |
4 |
|
33 |
55A0078 |
ZL50C.2.1-18 |
轴套 |
Spacer |
|
1 |
|
34 |
57A0027 |
ZL50C.2.1-19 |
垫片 |
Spacer |
|
1 |
|
35 |
23B0051 |
|
NSK圆锥滚子轴承 |
NSK Row Tapered
Roller Bearing |
HR30311DJ
55X120X31.5 |
1 |
|
36 |
12B0105 |
GB3452.1-92 |
O形圈 |
“O” Ring |
42.5X5.3 |
1 | |
|
|
|
|
| |
|
|
|
|
