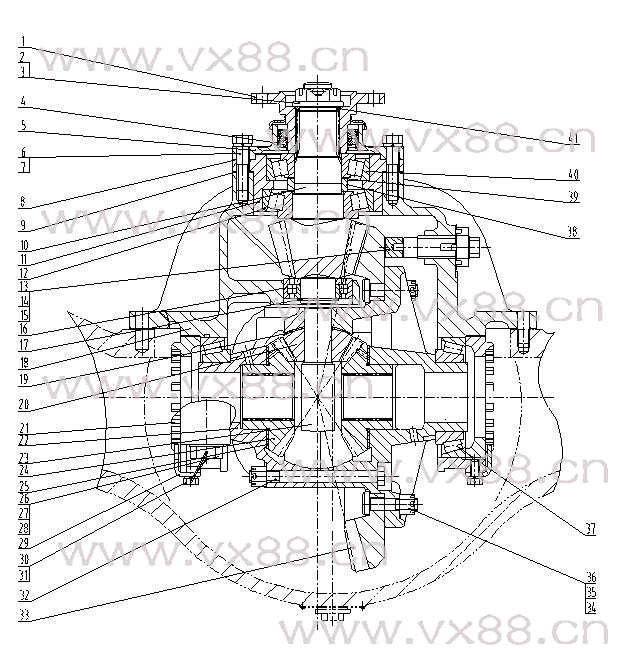

图文名称：后桥主传动 51C0061
所属机型：CLG852
图文编号：335
物料编号：51C0061
|
 |
|
| 详细资料 |
|
序号
No. |
零件号
Part No. |
原零件号
Old Part No. |
名称
Description |
规格
Size |
数量
Qty |
|
1 |
12D0032 |
ZL50G.3A.1.1 |
输入法兰 |
Flange |
|
1 |
|
2 |
03B0050 |
BS305-31 |
带槽螺母 |
Nut |
|
1 |
|
3 |
08B0032 |
GB91-86 |
销 |
Pin |
6.3×60 |
1 |
|
4 |
13B0169 |
B1SL348203 |
油封 |
Seal |
70×95×13 |
1 |
|
5 |
53A0106 |
ZL50C.2.1-2 |
密封盖 |
Cover |
|
1 |
|
6 |
00B0275 |
GB5783-86 |
螺栓 |
Bolt |
M14×55 |
8 |
|
7 |
06B0013 |
GB93-87 |
垫圈 |
Washer |
14 |
8 |
|
8 |
80A0021 |
ZL50C.2.1-3 |
垫密片 |
Spacer |
|
1 |
|
9 |
57A0024 |
ZL50C.2.1-4 |
调整垫片 |
Adjusting Shim |
|
1 |
|
10 |
43A0001 |
ZL50C.2.1-5 |
前桥主动螺旋锥齿轮 |
Driving Helical Bevel Gear |
|
1 |
|
11 |
55A0077 |
ZL50C.2.1-6 |
轴承套 |
Spacer |
|
1 |
|
12 |
23B0019 |
GB/T297-94 |
圆锥滚子轴承31312 |
Row Tapered Roller Bearing |
60×130×33.5 |
1 |
|
13 |
44C0019 |
ZL50C.2.1.2 |
止推螺栓 |
Thrust Bolt |
|
1 |
|
14 |
03B0154 |
GB6173-86 |
螺母 |
Nut |
M27×2 |
1 |
|
15 |
76A0011 |
ZL50C.2.1-7 |
锁紧片 |
Lock Strap |
|
1 |
|
16 |
22B0003 |
GB/T283-1994 |
圆柱滚子轴承 |
Row Cylindrical Roller Bearing |
NUP2208E
40×80×23 |
1 |
|
17 |
07B0038 |
GB894.1-86 |
挡圈 |
Ring |
40 |
1 |
|
18 |
34C0002 |
ZL50C.2.1.3 |
托架总成 |
Bracket Assem. |
|
1 |
|
20 |
43A0002 |
ZL50C.2.1-9 |
锥齿轮 |
Bevel Gear |
|
4 |
|
21 |
03B0062 |
ZL50C.2.1-10 |
调整螺母 |
Adjusting Nut |
|
2 |
|
22 |
34C0003 |
ZL50C.2.1.4 |
差速器壳 |
Differential Case |
|
1 |
|
23 |
63A0005 |
ZL50C.2.1-11 |
十字轴 |
Shaft |
|
1 |
|
24 |
43A0011 |
ZL50C.2.1-12 |
半轴齿轮 |
Gear |
|
2 |
|
25 |
56A0042 |
ZL50C.2.1-13 |
半轴齿轮垫片 |
Spacer |
|
2 |
|
26 |
02B0015 |
GB32.1-88 |
螺栓 |
Bolt |
M22×100 |
4 |
|
27 |
06B0067 |
GB97.1-85 |
垫圈 |
Washer |
22 |
4 |
|
28 |
40B0006 |
|
铁丝φ1.5×450 |
Wire |
|
2 |
|
29 |
21A0040 |
ZL50C.2.1-14 |
锁紧片 |
Lock Strap |
|
2 |
|
30 |
02B0012 |
GB32.1-88 |
螺栓 |
Bolt |
M10×20 |
2 |
|
31 |
06B0002 |
GB93-87 |
垫圈10 |
Washer |
10 |
2 |
|
32 |
01B0041 |
ZL50C.2.1-15 |
螺栓 |
Bolt |
|
8 |
|
33 |
43A0004 |
ZL50C.2.1-16 |
前桥大螺旋锥齿轮 |
Driven Helical Bevel Gear |
|
1 |
|
34 |
01B0042 |
ZL50C.2.1-17 |
螺栓 |
Bolt |
|
12 |
|
35 |
03B0156 |
GB9457-88 |
螺母 |
Nut |
M14×1.5 |
20 |
|
36 |
08B0040 |
GB91-86 |
销 |
Pin |
3.2×30 |
20 |
|
37 |
23B0012 |
GB/T297-94 |
圆锥滚子轴承32216 |
Row Tapered Roller Bearing |
80×140×35.25 |
2 |
|
38 |
55A0078 |
ZL50C.2.1-18 |
轴套 |
Spacer |
|
1 |
|
39 |
57A0027 |
ZL50C.2.1-19 |
垫片 |
Spacer |
|
1 |
|
40 |
23B0018 |
GB/T297-94 |
圆锥滚子轴承31311 |
Row Tapered Roller Bearing |
55×120×31.5 |
1 |
|
41 |
12B0105 |
GB3452.1-92 |
O形圈 |
O Ring |
42.5×5.3 G |
1 | |
|
|
|
|
| |
|
|
|
|
